MAX

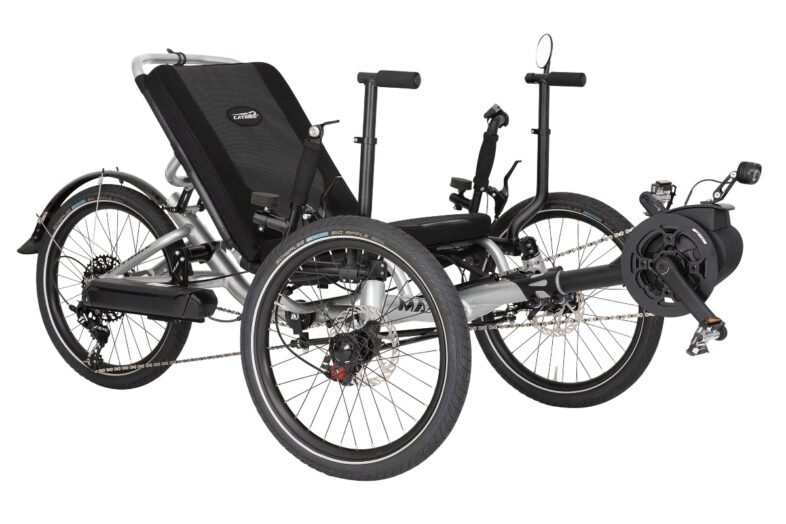

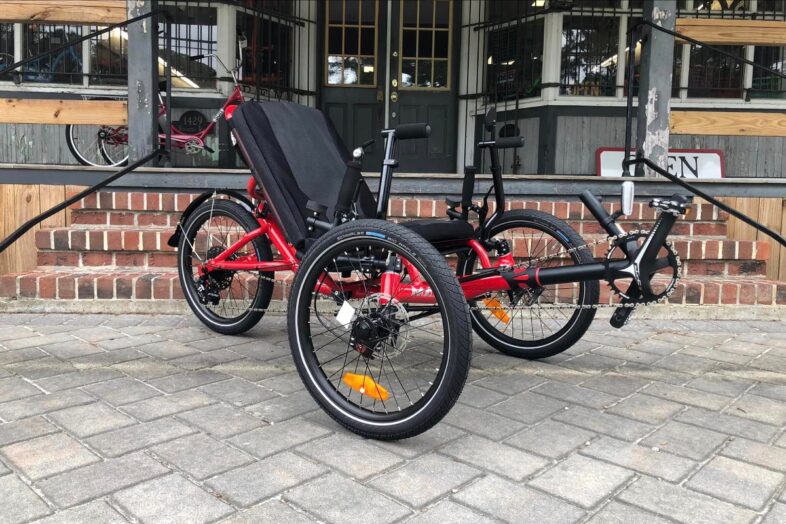

Experience comfort and confidence with the Catrike MAX. The MAX Features a higher and wider seat, a larger diameter cross-member and wide, sturdy rims; it supports up to 425 lbs of rider and gear. Equipped with Schwalbe Big Apple 2.0 tires, a 1×11 SRAM drivetrain and Catrike Assist Bars for easier entry and exit, the MAX is ready for adventure. Whether out for a relaxing ride or exploring new paths, the Catrike MAX offers freedom and reliability for every journey.




The MAX’s versatile 1×11 drivetrain is comprised of a SRAM TT500 shifter, APEX derailleur and cassette paired with an FSA Omega 42 MegaTooth crankset for smooth and reliable shifting. Avid BB7 disc brakes with Catrike locking brake levers provide reliable and controlled stops. Padded seat mesh, clipless pedals, rear fender, hand rest, Catrike’s patented Peace Boom, flag and flag holder along with Ackerman steering all add to the value of this Made in USA Catrike. It is also available with XL booms.



Available in eight beautiful Catrike colors

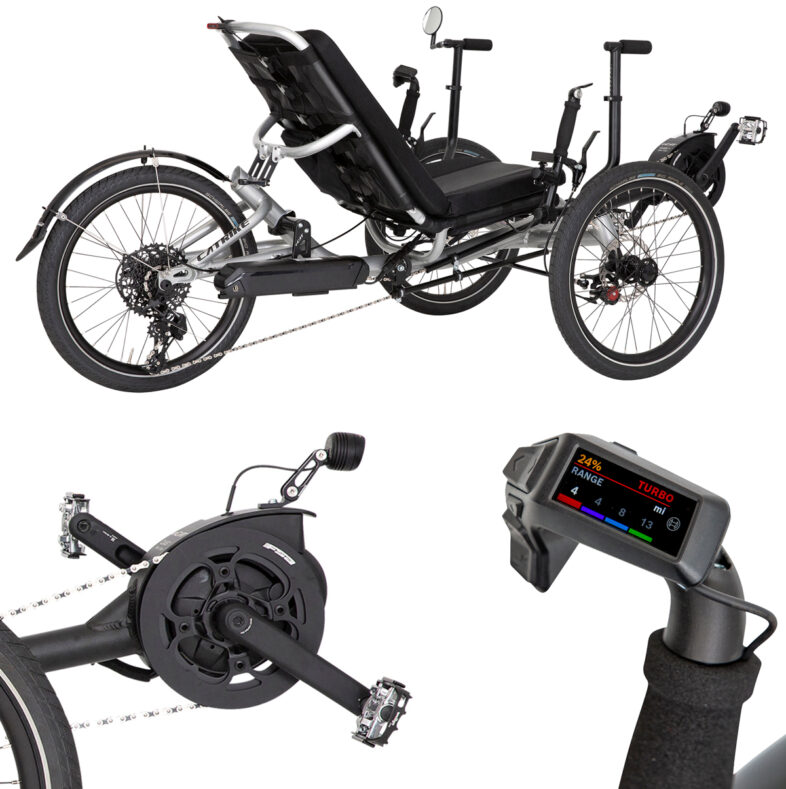

The MAX eCAT has all the durability and ease-of-use of the standard MAX with the added spark of the latest in electric assist systems from industry leader Bosch. The result is a MAX with the perfect combination of maximum efficiency, comfort and riding enjoyment.

The efficient and versatile Active Line Plus (Class 1) electric-assist drive mated to a 1 x 11 drivetrain (11 – 42 cassette / 44 tooth chainring) provides dynamic performance – guaranteeing an authentic riding sensation with minimal pedaling resistance. It delivers active and sporty acceleration even at low cadences, offering powerful assistance as soon as you step on the pedals.

In addition, the system’s multi-sensor technology and fast information processing ensure optimum interaction between you and your eCAT. The MAX eCAT is made with Bosch components and meets or exceeds all current safety standards and is UL2849 certified.

The Bosch BES3 Smart System introduces a new level of integration and performance to eCATs and eKITs, enhancing the riding experience with advanced connectivity and control. Central to this system is the Bosch Active Line Plus motor, engineered to deliver up to 50 Nm of torque with smooth, responsive power delivery.



The Catrike Assist Bars that come standard on the MAX



Type: Adaptive / Electric / Trikes /

Specs and Pricing

CATRIKE
MAX


Frame



6061 heat treated aluminum

Wheelbase:
40″
Track Width:
34″
Overall Width:
37.25″
Length:
74″
Ground Clearance:
6″
Turning Circle:
14.5 ft
Rider X-Seam Range:
39/46″

XL Boom: $150



Crank Height/Seat Height



16.25″ / 14.25″



Kingpins/Linkage

FSA Zero Stack

Direct Steering



Rims



Catrike, black. 406 F, 406 R



Spokes



Stainless Silver



Tires, F/R



20″ x 2 (406)  Schwalbe Big Apple



Hubs



Catrike Cartridge Bearing F/R, Thru Axle 50mm Front, 142mm Rear



Brakes



Avid BB7 Disc 160mm



Brake Levers



Catrike Locking



Derailleur F

N/A





Derailleur R



SRAM Apex 11



Shifters



SRAM SL500



Cassette



11-42 1050, 11



Crankset



FSA Omega ABS 165mm



Bottom Bracket



External Sealed Bearing



Chainrings



42



Seat



Catrike full mesh,
16″ wide.
47-57 degree angle adjust.
Folding



Handlebar/Riser



Catrike Direct Steer, Vertical Handlebar, telescopic adjustable w/ Assist Bars



Chain



KMC e11



Weight

40#

Rider Weight Max: 425 lb



Color



Colors:
Lava Red, Atomic Orange, Firefly Yellow, Eon Green, Candy Purple, Electric Blue, Liquid Black, Moon Rock Silver

$$ $3350

eCAT Bosch E Assist System: $3150



Finer Recliner Neckrest: $212

Catrike Fender Front Fenderset (rear standard): $125

Terracycle Chain Adjuster: $150

Terratrike Rear Rack: $89

ANGLETECH Trunk seat pack: $119

Mirror: STD

Fairing option
