Quattro



More speed. More comfort. More control.

As the name hints, the Quattro is already the fourth evolution of a popular Bacchetta model, with its last version being the Carbon Aero 3.0, or shortly CA 3.0. However, the design has changed dramatically. The CA 3.0 shared the same main frame tube shape as other Bacchetta models, much of the rest of the frame followed similar design cues as well. The Quattro, in contrast, is a completely independent design, taking full advantage of carbon’s potential. The frame features sculpted lines, integrated cable routing, stiffness where it matters, and zones allowing flex where needed. Seat adjustment is now handled by a simple new mechanism located on the top side of the frame. In short: it’s a design gem. — Recumbent.News 8 August, 2025

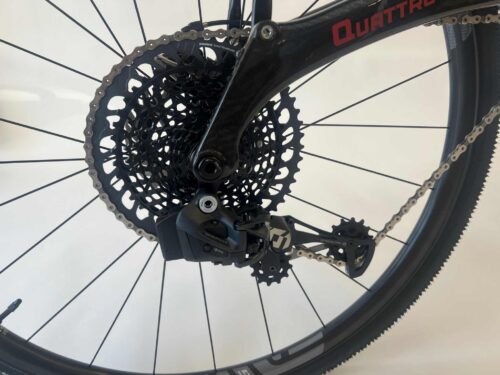

The new Bacchetta Quattro builds on the Carbon Aero’s legendary performance and features more versatility with the Adroit2 dropout system, allowing a rider to choose 142mm and 148mm thru axle rear wheels.

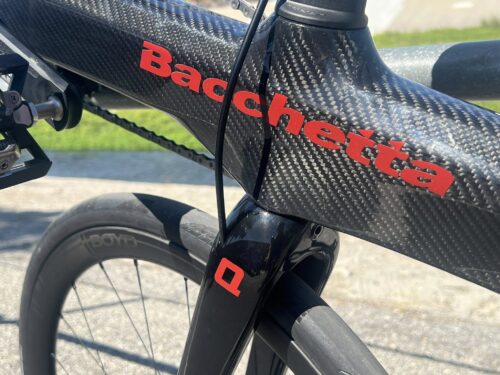

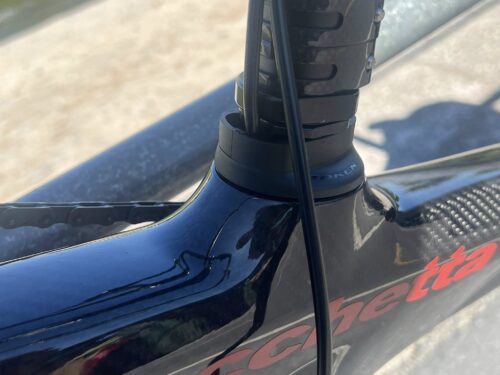

This performance road bike is now disk-brake-specific featuring internal cable routing and an oversized head tube to accommodate modern forks with a tapered steerer tube (for more strength and better handling).


Riders can now spec wider 50mm tires for more comfort across varied riding conditions, and configure the bike with high-end parts from SRAM, FSA, Enve, and TRP.


You can also choose whether you want the bike with Bacchetta specific Euromesh seat or the lightweight stiffer carbon fibre seat. The total weight can be as low as 20 pounds. Despite being a custom build, most configurations will be available with a lead time of just weeks.

X-seam range: Medium with Euromesh seat 40-46”, Large with Euromesh seat 43.5-49.5”

Type: Short Wheelbase / Tour

Specs and Pricing

Components

BACCHETTA Quattro

Custom



FRAME/FORK



Carbon Frame w/ Carbon blade /tapered Carbon steerer  fork

S: X Seam= 40-46″
L X Seam= 43.5-49.5″
w/ EuroMesh Seat



WHEELBASE



51″, M. 54″, L



SEAT HEIGHT



24.5″



BB HEIGHT



32″



WHEELS



Boyd Rouleur
Velocity Aileron Std (add $200)
Velocity Aileron Comp (add $530)
Velocity Aileron Pro (add $736)
Boyd Cycling Carbon 36mm (add $1350)
Boyd Cycling Carbon  55mm (add $1350)
Enve SES (add $2350)



SPOKES



Stainless



TIRES F/R



Conti Ultra Sport
28mm
Conti Ultra Sport
32mm
Conti GP5000
28mm (add $130)
Conti GP5000
32mm (add $130)
Schwalbe Pro One 28mm (add $130)
Schwalbe Pro One 32mm (add $130)



HUBS



Thru Axle:
142 or 148mm

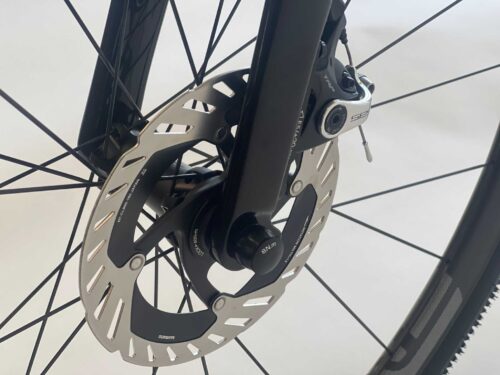

BRAKES



TRP Spyre Mechanical Disc

Shimano XT 4 Piston Hydraulic Disc w/ ICE Rotors: (add $629)



BRAKE LEVER(S)

TRP
–
Shimano XT Hydraulic


DERAILLEUR F



SRAM



DERAILLEUR R



SRAM GX 11
SRAM AXS Force Wireless: (add $1165)



SHIFTER(S)

SRAM GX
Gripshift 2x11AXS Wireless when ordered w/ AXS Force above


CASSETTE



11-36 or 11-42, 11 SRAM
–
10-36 or 10-42, 12
SRAM (on AXS)



CRANKSET



FSA Gossamer Pro

FSA SLK Light carbon fiber: (add $270)
Crank Lengths:
165, 170, 172.5, 175



BOTTOM BRACKET



FSA Mega EXO



CHAINRING(S)



30-46
34-50
36-52



GEAR INCHES







SEAT

B3
EuromeshCarbon Shell
(add $450)


HEADSET







HANDLEBAR/RISER



Bacchetta Stiffie w/ Adjustable Length Tweener bar



CHAIN



KMC X.11
–
SRAM Flat Top 12



WEIGHT



As low as 20# depending on build spec.



COLOR



Carbon Twill w/ Clearcoat. Choice of Decals

Single Color Paint: (add $200)

Dual Color Paint:
(add $300)

$$

$6450 Base



Glide Flex pivoting stem $145
